Rimu PCB Icon

Rimu PCB 1.07

Developed by - Windows - setup file rimupcb.zip (2.01 MB) - Shareware
Buy or select mirror:

MD5: d81aecd2993c742cd9eaef58faa858a3

All files are original. Download3K does not repack or modify downloads in any way. Check MD5 for confirmation.

Developer Description

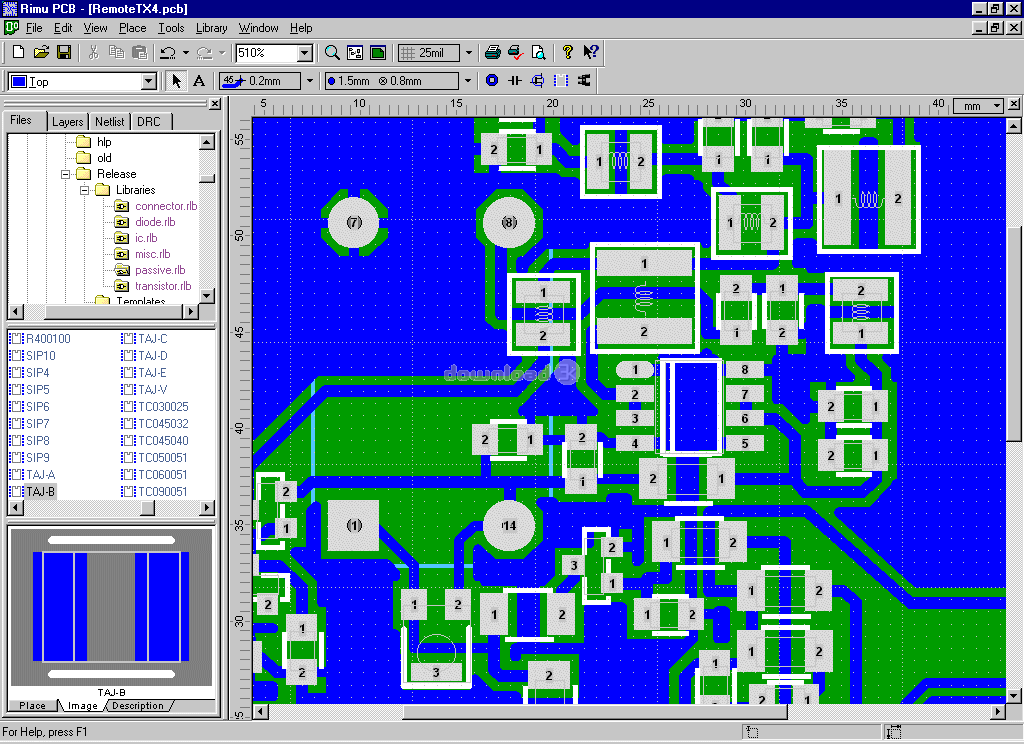

"Electronic PCB layout application"

PCB Designer is a cost effective, easy to use electronic printed circuit board PCB layout application.
Features:
Export Gerber RS274X and Excellon NC drill.
Import ASCII netlist.
Up to 16 layer boards supported.
Rulers, Guidelines and Dimensioning lines.
Five libraries - new components and libraries can be added.
Automated ground planes, isolated copper removal.
Tracks snap to pads for easy routing.
Multiple Undo / Redo.
Import PCB Designe/Protel Autotrax/Tango PCB II files.
Add bitmaps into your design and export them to Gerber
Much more!

Requirements: 200MHz CPU, 32M Ram, 10M HD Space
