PatchVerx 2.0.0.7

Developed by - Windows - setup file pv2.0.0.7setup.zip (15.43 MB) - Shareware
Buy or select mirror:

MD5: 9204b68ac6c0ee0816be39b98bd8c47b

All files are original. Download3K does not repack or modify downloads in any way. Check MD5 for confirmation.

Developer Description

"Create jack-field layouts and designations"

Patch Bay Design and Designation Strip Tools

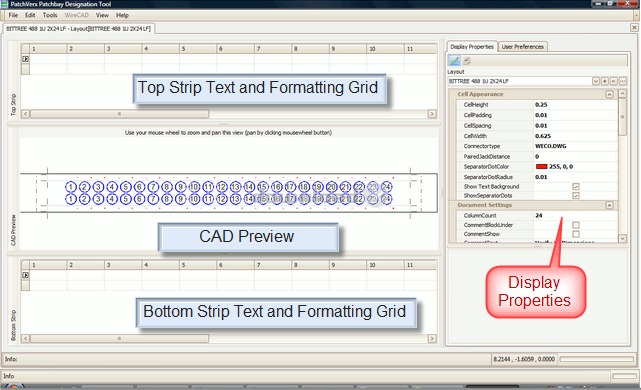

Create jack field layouts and designation strips from a large set of pre-existing templates.

Create CAD accurate drawings and output without knowledge of CAD. Work in easy text grids with copy, fill, and increment functions. Use one of the 90+ templates or create your own.

Works with or without WireCAD v6. When used as a plugin to WireCAD, Patch Verx can pull strip data from the selected project cables database. This allows you to rapidly create layout as based on actual connection data.

Choose from many connector styles.

Prints to any Windows print device.

Exports to dwg, dxf, png, jpg, gif.

Import data from csv.

New template wizard. Easily create any one or two strip jack field with any number of columns, splits and pair combinations.

Stand-alone PatchVerx can export cable runsheets.

Requirements: Win 2000 or better, 500Meg RAM, 32 bit graphics card, 40Meg HD Cost

What's new in this version: New templates added
