LiteCAD 2.0.0.48

Developed by - Windows - setup file litecad.zip (8.50 MB) - Freeware
Select a download mirror:

MD5: 195b5646a5c2d53079daeca56b48b622

All files are original. Download3K does not repack or modify downloads in any way. Check MD5 for confirmation.

Developer Description

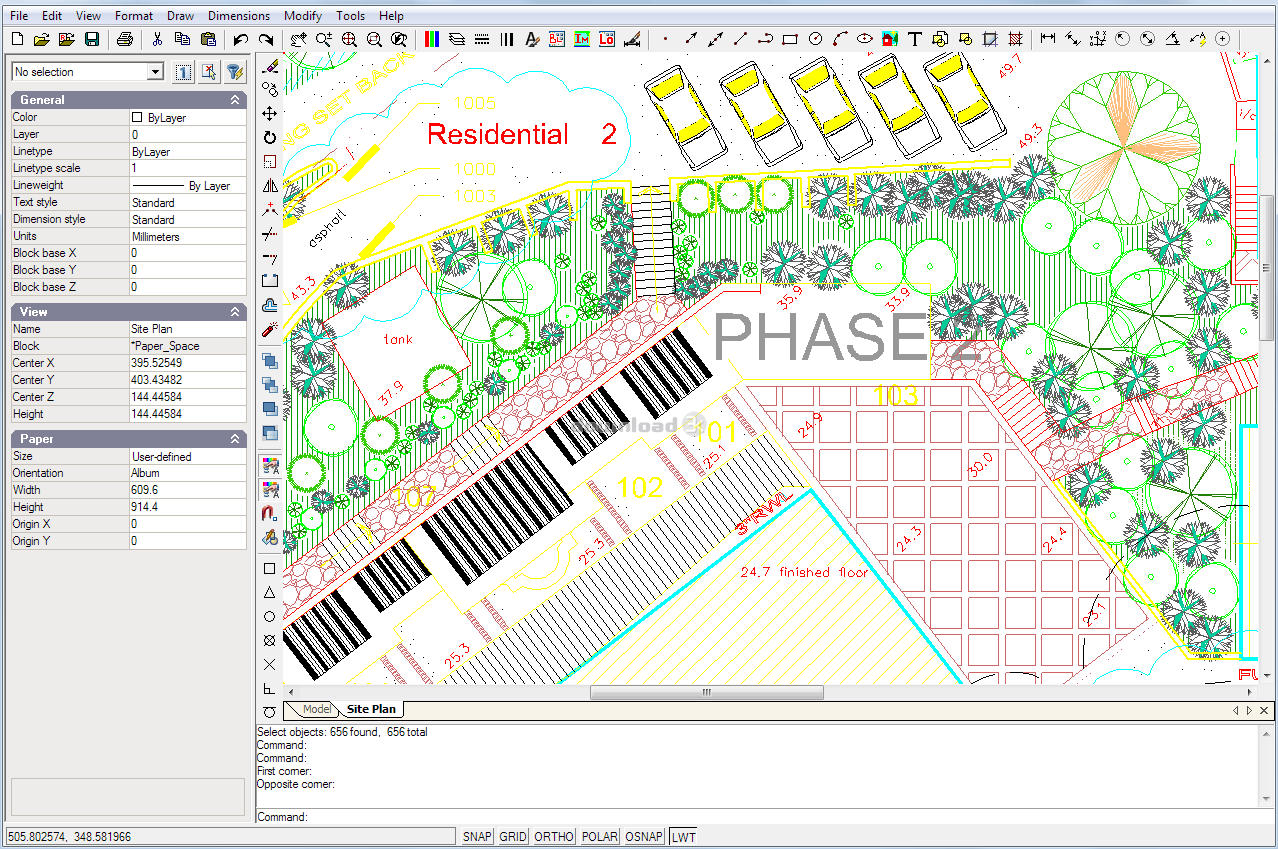

"Create, edit, view, and print 2D CAD drawings"

LiteCAD is a 2D CAD program. The editor can be used as a multi-purpose drafting application. The main component of the package - LiteCAD DLL library is intended for software developers who build own specialized drawing applications, CAD / CAM / GIS type. This component provides vector graphics possiblilities and has a simple API for using it with the popular languages such as Visual C++, C#, Visual Basic, VB.NET, Delphi. LiteCAD OCX module provides ActiveX interface for the DLL.
Main features:
- Graphics objects: Point, Line, Polyline, Circle, Arc, Ellipse, Rectangle, Text (single, multiline, arc), Raster Image, Hatch, Dimension (rotated, aligned, angular, ordinate, radial, diametic), Leader, Block Insertion, Viewport.
- Named objects: Block, Layer, Linetype, Text Style, Dimension Style, Layout.
- Edit operations: Copy, Move, Rotate, Scale, Mirror, Explode, Erase, Join, Offset. Single objects can be edited by moving their control points (grips).
- Various snap modes allows you to draw/edit objects accurately without tedious calculations. Snapping modes use ID markers to enhance operator speed and vision. Superior Polar Tracking capability. Command line interface offers exact placement of objects.
- Event-driven mechanism allows your application to control user's actions with a drawing.
- Access to all the properties of any object, either programmatically or via dialogs. A unique identifier for each object facilitates external database referencing.
- Supports AutoCAD DXF drawings format. Other vector formats can be added using the plugin interface.
- Supports Windows TTF fonts and AutoCAD SHP/SHX fonts.
- Supports AutoCAD hatch patterns (PAT) and linetypes (LIN).
- Print Preview. Also you can use Paper space layouts to prepare paper sheets ready for printing.
- Multi-language interface. Easy localization to any language.
