AutoTRAX EDA 1.3.80

Developed by - Windows - setup file AutoTRAX.exe (39.78 MB) - Shareware
Buy or select mirror:

MD5: 11be0afa09b707a028932572eb061ea9

All files are original. Download3K does not repack or modify downloads in any way. Check MD5 for confirmation.

Developer Description

"Electronic Schematics, Simulation and Layout"

AutoTRAX EDA is a powerful integrated Electronic Design Suite for Electronic Engineers. It has all the features you expect and need to rapidly and easily take your design from conception through to production. It's in-built hierarchical project manager lets you perform both top-down and bottom-up design and reuse design components and sub-systems.
Starting with its easy to use Schematic Capture mode, you can drag pre-created parts onto your design sheets and rapidly and reliably connected the terminals together using wires, buses and off-page connectors. AutoTRAX ensures that your design remains correct throughout with no dangling wires or design rule violations.
You can also create your own parts either in-place on your design sheets or using the integrated Part Creator.

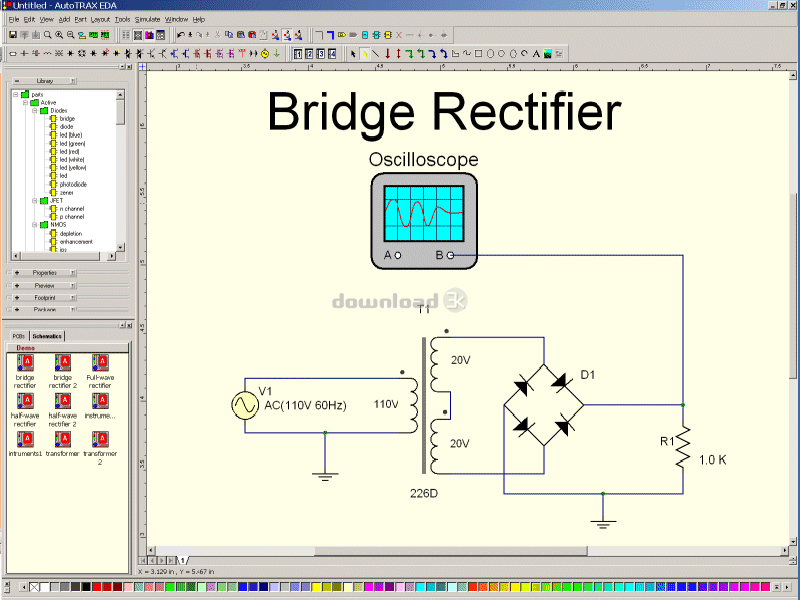

Once you have created your design you can rapidly simulate it's analog performance using the build in virtual instruments such as oscilloscopes and signal generators.
When you are satisfied with your design and simulation results, you can then quickly proceed to produce your finished and populated PCB board without leaving the AutoTRAX program. The AutoTRAX PCB Designer will take your hierarchical design and place the components, with or without your assistance. Next AutoTRAX can either autoroute your board or you can use a combination of automatic and manual routing to quickly and reliably complete all electrical wiring. The design of AutoTRAXs internal data ensures you main full electrical integrity with your schematic design. No surprises with lost or missing PCB tracks or wires, or those extra wires.
Now that you have your design finished and routed you can then produce all Computer Aided Manufacturing files you will need to produce the board, drill the holes, cut it's profile, order parts using the Bill Of Materials, and place your parts using the pick and place files.

Requirements: 256MB RAM

What's new in this version: Added PDF export. The actual design files can optionally be embedded in the PDF file. Improved autorouter. Works on Vista.
