EZ Schematics Icon

EZ Schematics 5.2.105

Developed by - Windows - setup file EZ_Schematics_Setup.exe (2.57 MB) - Shareware
Buy or select mirror:

MD5: 9f10810c9c7754d64c2d79ac9df3642e

All files are original. Download3K does not repack or modify downloads in any way. Check MD5 for confirmation.

Developer Description

"Quick Electrical Schematic CAD Software"

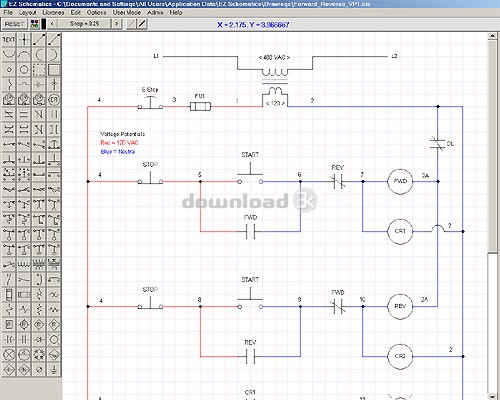

Create and print professional looking electrical schematics quickly and easily. Insert relay logic into your drawings faster than any other CAD program. All of the most popular American symbols (over 60) already predrawn in 1/4" or 1/2" increments and available with a simple click for quick, easy and precise insertion. Symbols include contacts, relays, timers, motors, limit switches, pressure switches, thermal switches, flow switches, push buttons, selector switches, overloads, transformers, fuses, circuit breakers, foot switches and more. Inserting wire numbers and device names has never been easier as well. Now includes electrical circuit simulations. Added new functions allows the end user to save schematics as bitmaps and create their own symbols.

Requirements: 128 Meg Ram, 10 Meg Hard Disk Space, Min. 1024 x 768 Screen Resolution

What's new in this version: Now Compatible with European Regional Settings, Improved Text Function

Antivirus information

Download3K has downloaded and tested EZ Schematics on 26 Sep 2013 with some of Today's best antivirus engines and you can find below, for your convenience, the scan results:

  • Avast:

    Clean

  • Avira:

    Clean

  • Kaspersky:

    Clean

  • NOD32:

    Clean
EZ Schematics Antivirus Report
Complete antivirus report
User rating
0/5 (0 votes)
Your rating
Download3k Antivirus report Clean badge
